1. Product Overview
Clamp onflowmeter transducer is an innovative flow measurement device component that provides a convenient, efficient and accurate solution for monitoring fluid flow. It uses advanced technology to achieve flow measurement without cutting or complex modification of the pipeline.
2. Working Principle
This sensor works based on a specific physical principle. When clamped on the outside of the pipeline, it transmits and receives signals (such as ultrasonic signals, etc.) to the fluid in the pipeline. Taking the ultrasonic clamp-on sensor as an example, when ultrasonic waves propagate in the fluid downstream and upstream, the propagation time or frequency will be different due to the different flow speeds of the fluid. The sensor accurately captures these differences, and combines the known parameters such as the inner diameter and material of the pipeline, and uses a special algorithm to convert these data into fluid flow rate information, and then derives the flow value.
3. Functional characteristics

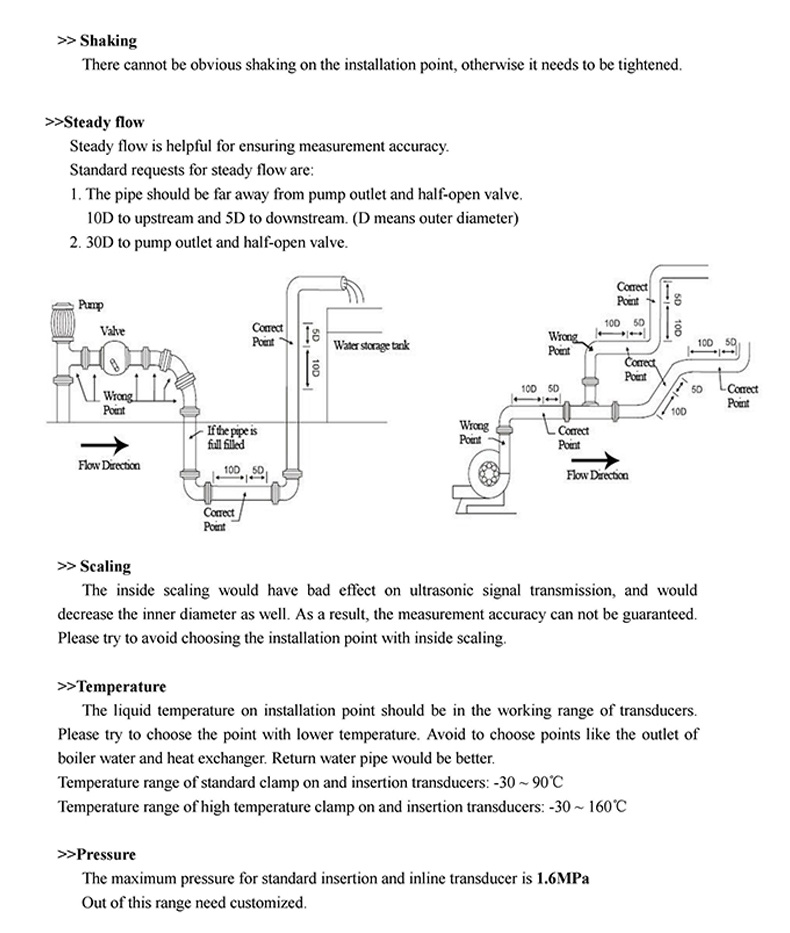

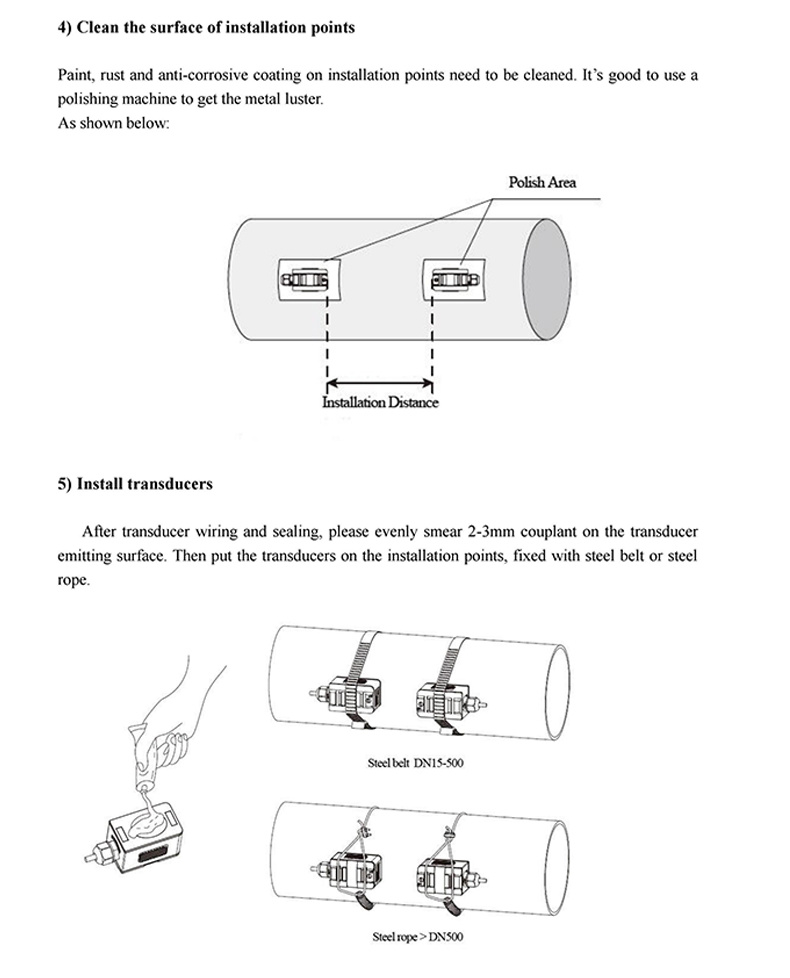

Non-invasive installation
The biggest advantage is its clamp-on installation method. Just clamp the sensor tightly at a suitable position on the outer wall of the pipeline, without destroying the integrity of the pipeline, and will not interfere with the normal flow of the fluid inside the pipeline. This is convenient for the running pipeline system and will not cause production interruptions.
Wide compatibility
Clamp onflowmeter transducer can adapt to pipes of various diameters, and can accurately measure both small and large diameter pipes. At the same time, the material requirements for pipes are not high, whether it is metal pipes (such as steel pipes, copper pipes) or plastic pipes (such as PVC pipes, PE pipes), etc. can work normally.
High-precision detection
With high measurement accuracy, it can accurately obtain fluid flow data to meet the needs of accurate flow measurement in different industrial environments and application scenarios, such as precise control of raw material flow in chemical production, water metering in water supply systems, etc.
Low maintenance cost
Due to its non-invasive characteristics, the risk of fluid erosion and wear of the internal components of the sensor is low, which reduces the frequency and cost of maintenance and has a long service life.
4. Application scenarios
Clamp onflowmeter transducer can be used to monitor the flow of raw materials and finished products in the chemical and pharmaceutical industries; in water supply and drainage systems, it is used for water metering and monitoring; in HVAC systems, it measures the flow of refrigerants and water to ensure the efficient operation of the system.
