Ultrasonic flow meter is an innovative flow measurement device that has been widely used in many industries due to its unique advantages.
1. Working principle
Ultrasonic flow meter measures flow based on the propagation characteristics of ultrasound in fluid. It sends and receives ultrasonic signals to the fluid by installing an ultrasonic transducer outside the pipe. When the fluid is stationary, ultrasound propagates at a fixed speed in the pipe; when the fluid flows, the ultrasonic propagation speed in the downstream direction will increase, while that in the upstream direction will slow down. By measuring the time difference, frequency difference or phase difference of ultrasound propagation in the downstream and upstream directions, combined with known parameters such as the size and material of the pipe, a special algorithm can be used to accurately calculate the flow rate of the fluid and obtain the flow value.
2. Product features
Non-invasive measurement
Ultrasonic flow meter does not require cutting the pipe or installing any parts that hinder the flow of fluid inside the pipe. This feature not only avoids damage to the integrity of the pipeline system, but also reduces the risk of fluid leakage caused by installation, while also reducing installation and maintenance costs.
Wide applicability
Various types of fluids can be measured, including liquids and gases. Whether it is clean water, oil, sewage with certain impurities, or even gaseous media such as air, it can effectively measure flow. Moreover, it can adapt to pipes of different diameters, from small diameters to large industrial pipelines.
High precision and stability
Ultrasonic flow meter uses advanced electronic technology and precise signal processing algorithms to ensure that the measurement results have high accuracy. During long-term operation, it can maintain stable performance and is not greatly affected by environmental factors such as fluid temperature and pressure, thereby providing users with reliable flow data to meet the needs of industrial production, energy management, environmental protection and other aspects.

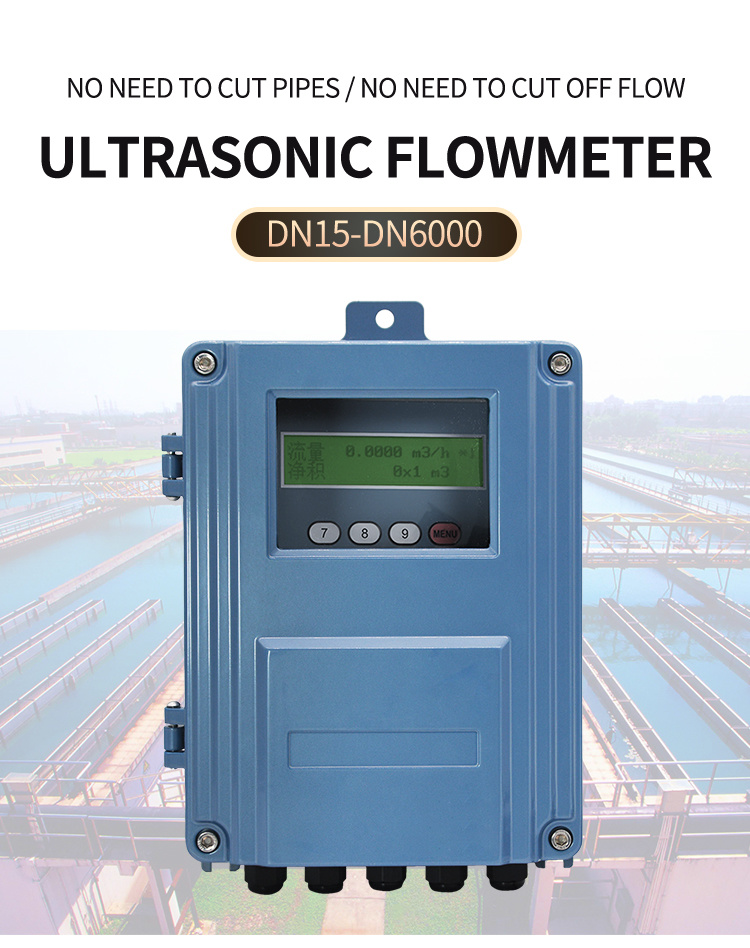

Ultrasonic flow meter
