1. Working principle
Mono channel ultrasonic flow meter uses the propagation characteristics of ultrasound in fluid to measure flow. The transducer of the single channel ultrasonic flow meter emits an ultrasonic signal on one side of the pipe, and the signal passes through the fluid to the transducer on the other side of the pipe. When the fluid flows, there will be a difference in the speed of ultrasound propagation downstream and upstream, and this difference has a specific relationship with the flow rate of the fluid. By accurately measuring the relevant data such as this time difference or phase difference, combined with the known parameters such as the inner diameter and material of the pipe, the flow rate of the fluid can be calculated based on a scientific algorithm, and then the flow value can be obtained.
2. Product advantages
Easy installation
The design of the Mono channel ultrasonic flow meter makes its structure relatively simple, and the installation process on the pipeline is relatively easy. There is no need to make large-scale modifications to the pipeline. Just install the transducer at the appropriate position of the pipeline as required, which greatly reduces the workload and time cost of installation.
High cost-effectiveness
Compared with multi-channel ultrasonic flow meters, its structure is simple and the cost is relatively low. For some cost-sensitive application scenarios where flow measurement requirements are not extremely complex, such as water supply systems in small factories and flow measurement of air conditioning water systems in ordinary buildings, it is a very cost-effective choice.
High accuracy
Under a stable flow state, the single-channel ultrasonic flow meter can provide accurate flow measurement results. Its measurement accuracy can meet the basic flow monitoring needs of most industries and civil uses, provide users with reliable flow data, and help control the production process and rationally allocate resources.
3. Application scope

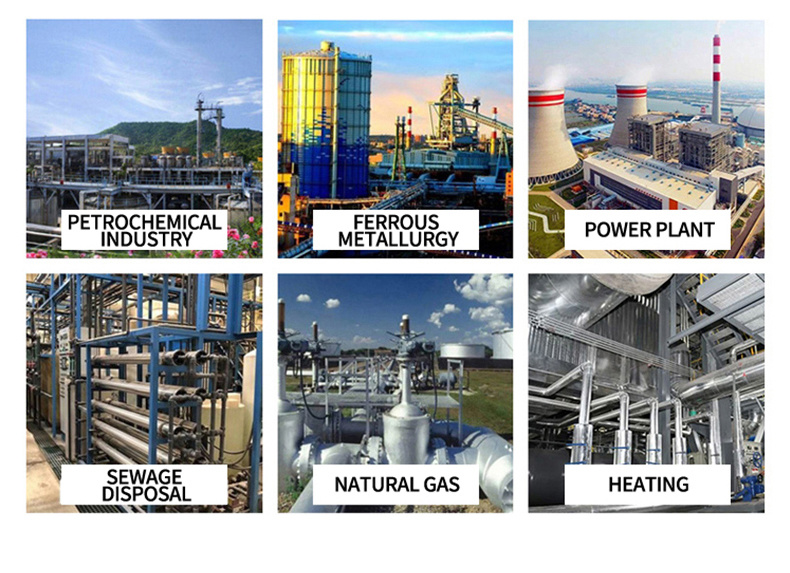

Mono channel ultrasonic flow meter is widely used in water supply and drainage, air conditioning and refrigeration, heating systems and other fields, and also plays an important role in fluid flow monitoring in small industrial production processes.

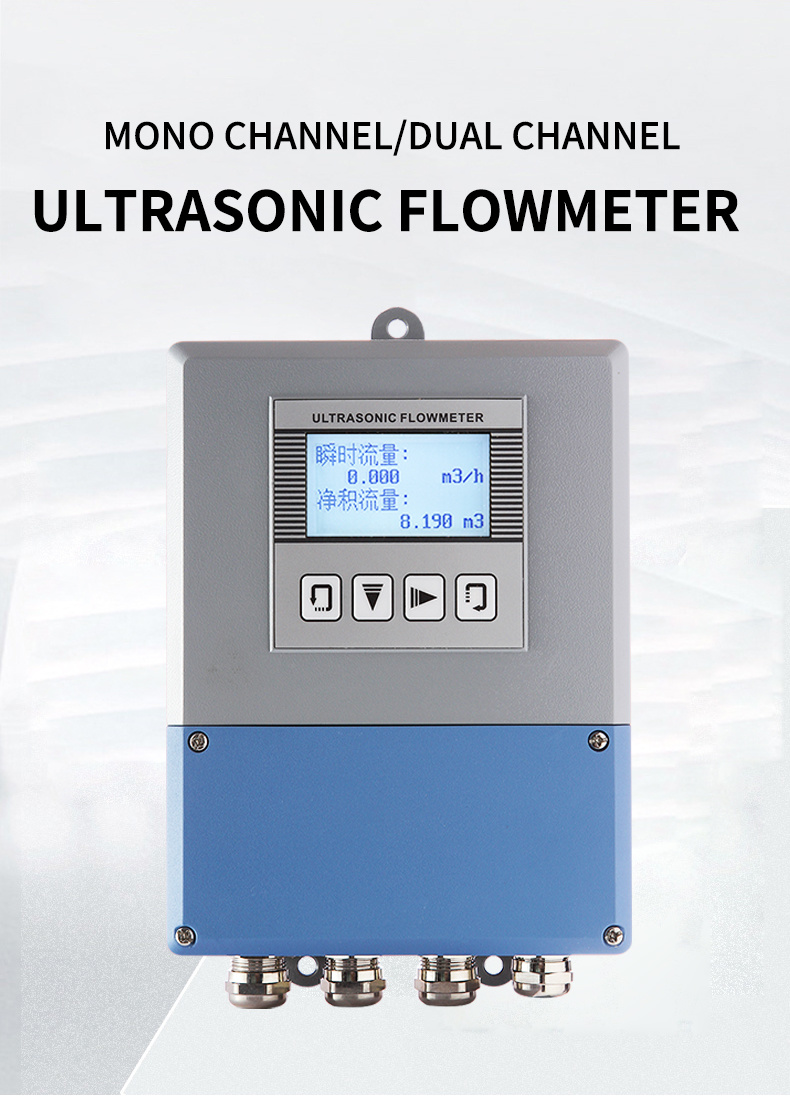

Mono channel/dual channel ultrasonic flow meter
